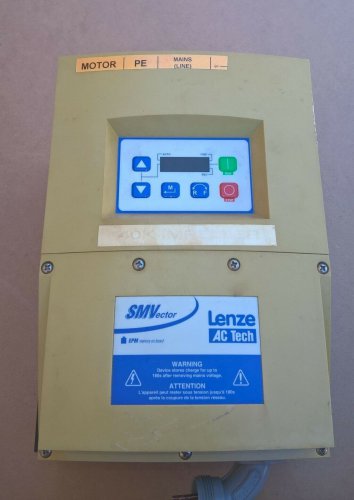

Lenze AC Tech SMVector ESV552N04TXC AC Drive Inverter VFD 7.5hp 400-480V 3 Ph 4X We gladly ship worldwide*! Lenze AC Tech SMVector ESV552N04TXC AC Drive Inverter VFD 7.5hp 400-480V 3 Phase input, 0-400/460V Output type-4X LENZE SMVector Series NEMA4X IP65 Frequency Inverters can be used with 3-phase AC induction motors. Programmable digital and analog I/O allow the drive to be configured for many application specific tasks such as multiple preset speeds, electronic braking and motor jogging to name a few. Like all Lenze - AC Tech sub-micro drives, the SMVector uses EPM memory technology for fast and efficient programming. Control Terminals Digital Inputs: 1 Run/Stop 3 Programmable [4 for 15HP (11kW) models and higher] Digital Outputs: 1 Form A relay 1 Open Collector Analog Inputs: 1 voltage (0-10VDC) 1 current (4-20mA) Analog Output: 1 voltage (0-10VDC) Power Supplies: 10 VDC (Potentiometer Reference) 12 VDC, 20mA (Digital Inputs) 12 VDC, 50mA Standards and Conformance UL & cUL (North America) CE (Europe) Low Voltage Directive (EN61800-5-1) EMC Directive (EN61800-3) when suitably filtered GOST (Russia/Ukraine) C-Tick (Australia and New Zealand) RoHS Optional Options: Communication Modules: With plug-in communication modules, the SMVector is easily integrated into any one of today's most commonly used industrial networks. Whether the application is to automate a single machine or an entire facility, the SMVector is fully equipped to make the process a snap. Available Communications Modules are: Modbus / RS485 (standard on 15HP (11kw) models and higher) DeviceNet CANopen PROFIBUS DP EtherNet/IP Additional Form-C relay output Additional I/O module with 1 Form-C relay and 2 digital inputs Speed Potentiometer: A speed potentiometer is a preferred operator interface in some applications than up and down push buttons. For these situations, an option terminal cover replacement for NEMA 4X drives (with or without disconnect) is available that integrates a speed potentiometer, knob and dial. Remote Keypad: Simple 4 wire connection between the SMVector drive and the remote keypad provides for drive operation (start, stop, direction and speed) and programming. Includes 4 digit LED display. Measures only 3.4in (H) x2.2 in (W). Includes gasketing to meet up to NEMA 4X rated environments. Dynamic Braking: Packaged Dynamic brake option includes control and resistors in an easy to implement solution for fast stopping or deceleration requirements. Cat Number: ESV552N04TXC Description: AC INVERTER,SMVECTOR,NEMA4X/IP65,INDOOR DUTY 7.5HP,400-480VAC,3PH INPUT Output Amps 480V: 11.0 Output Amps 400V: 12.6 Ship Weight: 12 lbs. Don't forget to place your buy. By looking on this product you agree to the following terms: Shipping Terms: Buyer pays all shipping costs. Let us know if there is an issue with the shipping costs, as they are automatically calculated by eCRATER. Shipments made to California must include 7.75% sales tax unless we are provided with a valid resale certificate. We reserve the right to ship with Fedex ground, USPS and any other carrier in the best interests of the buyer and seller. The Parcel post option is only available to alaska, Hawaii, and US territories only. If you select parcel post and you live in the lower 48 states you package may be sent by another carrier and/or an additional shipping amount may be required. If the shipping cost quoted is over $150, that means it will be shipped freight, and the price quoted is for pickup at a freight terminal nearby your location (usually within 25 mi if you are in a major US city). if you need residential delivery, or if you don't have a forklift/loading dock the price will be higher in some cases. Payment Terms: Payment is to be made by PayPal Please contact us if you have any questions about eCRATER's recent payment policy change. Payment is to be received within ten days of close of product. Should payment not be received within ten days the item will be re-listed and high buyder will forfeit. International Terms: (These terms only apply to international shipments.) Buyer is responsible for all brokerage, customs, and or duty charges. *Not all items are available for international shipment due to import/export regulations. In the event that we are unable to ship to buyers country, buyer will receive a full refund. Payment must be made in US Dollars. Money must be drawn against a US bank. Warranty Terms: No warranty nor guarantee is expressed or implied regarding: usability, functionality, merchantability, or cosmetic appearance of the item(s) in product. What you see in the picture(s) is what you get nothing more nothing less. Test results of item(s) in product are described to the best of our ability in the ad. The results of all tests that are performed are disclosed in the ad. Items sold as "Untested" are simply that we have been unable to test the item(s) due to missing cables/adapters/toner cartridge/ksu/etc, lack of time, or other restrictions, Such as when we sell a laptop that we don't have an AC adapter for. Our only guarantee is that you will receive the make and model listed in the ad. The maximum liability of BigonBusiness (the seller) is the high buy of the product. Return Terms: Returns are only allowed under cases of gross misrepresentation in the ad, such as when we describe a monitor as a fax machine. Such claims of misrepresentation must be filed within three days of receipt of shipment. Best Stuff To You reserves the right to replace the item(s) or refund the high buy solely at our discretion. Item must be returned in the original box and packaging. buyder must request a RMA number before returning item(s). Packages returned without a RMA number will become property of Best Stuff To You ten days after receipt unless buyer has paid return shipping within the ten day period. Shipping Damage Terms: Seller will file a shipping claim(s) upon behalf of the buyer with common carrier in the event shipment(s) is/are damaged during shipping, provided buyder has purchased insurance. Not retaining the original box and packaging may affect the carriers decision on a claim. Seller will commence filing the claim once buyer has filed the damage report with the seller. Buyer must notify seller within 48 hours of receipt of a damaged shipment. Medical Equipment Terms: The sale of these items may be subject to regulations by the U.S. FDA and state and local regulatory agencies. If so, you may not be able to buy on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Seller: Daniel Rydell San Diego, CA contact via eCRATER messages. If any provision of this product Contract is held unenforceable, All remaining provisions of this Contract shall remain in full force and effect. Copyright 2017 BigonBusiness - All Rights Reserved.
